The case carries one firearm — a rifle or shotgun up to approximately 46 in overall — in a tapered body cut wider at the buttstock and narrower toward the muzzle. Strap width is specified between 38 mm and 75 mm depending on the programme, and anchor spacing is set so the 122 cm body hangs parallel to the back rather than nose-down. Both the strap and the padding thickness are OEM variables rather than fixed features.
Carried load is approximately 4.85 kg — the 0.85 kg case plus a 4 kg firearm — borne on one shoulder. Strap width determines the contact area over which that load is spread.
| Strap Specification | Load Carried | Contact Area | Contact Pressure |
| 38 mm webbing, unpadded | 4.85 kg | approx. 95 cm² | 0.051 kg/cm² |
| 50 mm padded | 4.85 kg | approx. 125 cm² | 0.039 kg/cm² |
| 75 mm padded | 4.85 kg | approx. 188 cm² | 0.026 kg/cm² |
| Twin harness, for reference | 2.42 kg per shoulder | approx. 125 cm² each | 0.019 kg/cm² |
Widening the strap from 38 mm webbing to 75 mm padded halves contact pressure at the same load and adds approximately 35 g to the finished weight. Padding is specified above 50 mm width; below that the webbing is supplied unpadded.
| Variable | Specification Range | What It Controls |
| Strap width | 38 mm / 50 mm / 75 mm | Contact pressure on the shoulder |
| Padding | Fitted above 50 mm width | Pressure distribution across the contact area |
| Anchor spacing | Set against the 122 cm body length | Hang angle; prevents nose-down rotation |
| Adjustment range | Standard or extended | Carry height over layered clothing |
| Hardware | POM slider and buckle | Length retention under sustained load |
| Removability | Removable as standard; fixed on request | Whether the case stores flat |
Anchor spacing is confirmed at sampling. Anchors set too close together allow the body to hang nose-down and swing during carry; correctly spaced, the case hangs parallel and holds position.
| Layer | Material | Specification |
| Outer | 600D polyester Oxford | Water-resistant finish |
| Middle | Foam padding | 10–15 mm |
| Inner | Soft polyester lining | Quilted |
| Edges | Bound | Heavy-duty stitched construction |
| Closure | Full-length coil zipper | Opens the body flat |
| 1 zippered front pocket | Tools, cleaning kit, small gear |
| Configuration | Load per Shoulder | Removal Motion | Typical Application |
| Single strap | 4.85 kg | One motion, over the head | Frequent short transitions; seated positions |
| Reinforced handle | Two-handed or one-handed lift | Direct lift | Loading, vehicle to stand |
| Twin harness (optional) | 2.42 kg | Two arms, sequential | Extended walked distance |
The twin harness upgrade fits the same anchor positions, so a programme can run both configurations from one case body without new tooling.
Single-shoulder carry loads one side at 4.85 kg. The strap is lifted over the head and settled on the opposite shoulder without removing the case, and the adjuster holds its setting through the transfer.
1. Grip the strap webbing at chest height with the opposite hand
2. Lift the strap over the head while the case rotates behind
3. Settle the strap onto the other shoulder and release
4. Adjust length if the two shoulders sit at different heights under clothing
| Specification note:single-strap carry places the full 4.85 kg on one shoulder. For extended walked distance, steep terrain, or applications requiring both hands free, specify the twin-harness configuration. The case is water-resistant with a stitched construction and standard coil zipper; it is not immersion rated. Programmes requiring an immersion rating should use the welded TPU range. |
| Item | Specification |
| Model | SL-E899 |
| Size | 122 × 26 cm (48 × 10–11 in) |
| Weight | approx. 0.85 kg |
| Outer fabric | 600D polyester Oxford, water-resistant finish |
| Padding | Foam, 10–15 mm |
| Inner lining | Soft polyester |
| Closure | Full-length coil zipper |
| Accessory pocket | 1 zippered front pocket |
| Profile | Tapered rifle and shotgun cut |
| Carry | Adjustable removable shoulder strap + reinforced handle |
| Construction | Heavy-duty stitching, bound edges |
| Weather rating | Water-resistant |

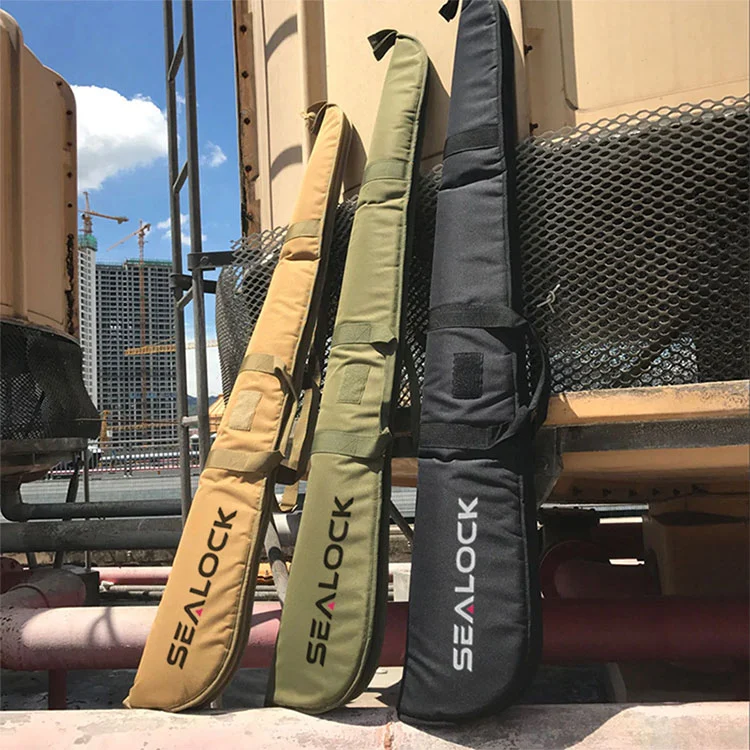

| Colourways | Sand / Army Green / Camouflage / Black |
| MOQ | 300 pcs |
| Sample lead time | 7–10 days |
| Production lead time | 30–45 days |
| OEM / ODM | Supported |
| Option | Notes |
| Strap width | 38 mm, 50 mm, or 75 mm; padded above 50 mm |
| Anchor spacing | Set against body length at sampling |
| Adjustment range | Extended for layered cold-weather markets |
| Quick-release hardware | Guided and boat-based programmes |
| Twin-harness upgrade | Fits the same anchor positions |
| Product length | Matched to target firearm range |
| Padding thickness | Adjusts protection level and price tier |
| Exterior colour and camouflage | Pantone and pattern matching |
| Branding | Screen print, heat transfer, or embroidery |
| Packaging | Colour box, printed carton, hang tag |
5. Incoming inspection of Oxford fabric, foam, lining, webbing, and zipper
6. Precision cutting of shell, foam, and lining to the tapered pattern
7. Foam and lining assembly between outer and inner layers
8. Full-length zipper installation
9. Accessory pocket assembly and attachment
10. Strap anchor bar-tack reinforcement at both attachment points
11. Strap and handle attachment
12. Edge binding and seam reinforcement
13. Hang angle and load verification
14. Final inspection and export packing
| Check | Method | Frequency |
| Incoming material | Visual and dimensional | Every batch |
| Anchor bar-tack | Visual verification at both points | 100% |
| Hang angle | Loaded case suspended and observed | Sampling |
| Adjuster retention | Load applied at a set length | Sampling |
| Strap pull | Loaded pull test at anchors | Sampling |
| Zipper function | Full-length open and close | 100% |
| Foam placement | Visual through the body | 100% |
| Packaging | Carton verification | 100% |
| Test | Method | Outcome |
| Anchor load | 1,500+ suspended load cycles at the anchor pair | No deformation or anchor separation |
| Hang angle | Loaded case suspended at rest | Body hung parallel; no nose-down rotation |
| Adjuster slip | Sustained load at a set length | Length setting retained |
| Shoulder transfer | Repeated switching while loaded | Adjuster held setting; no slippage |
| Strap pressure | 38 mm against 75 mm padded at equal load | Contact pressure halved at the wider specification |
| Water-resistance | Surface spray on the outer fabric | Surface water shed; interior stayed dry |
| Padding impact | Controlled knock with a weighted mock firearm | Absorbed; no damage to contents |
| Abrasion | Contact with vehicle floors, benches, and bark | Cosmetic wear only |
Water-resistance testing is surface spray based. The construction is stitched with a standard coil zipper and is not immersion tested.
Guided operations with frequent vehicle, boat, and stand transitions; treestand and platform access requiring one-handed handling; layout and pit blinds with no overhead clearance; vehicle cabs where the case is removed from a seated position; short walk-in access from parking areas; and range sessions with repeated short moves between relays.
| Item | Specification |
| Individual packing | PE protective bag |
| Product identification | Hang tag or barcode label |
| Master carton | Five-layer export carton |
| Carton printing | Customer artwork available |
| MOQ | 300 pcs |
| Sample lead time | 7–10 days |
| Production lead time | 30–45 days |
| Trade terms | EXW / FOB / CIF |
| Certifications | ISO 9001, BSCI, SMETA, GRS (material dependent) |
| Included Item | Quantity |
| Single-Strap Rifle Slip (SL-E899) | 1 |
| Adjustable removable shoulder strap | 1 |
| Product hang tag | 1 |
| PE protective bag | 1 |
• 12-month warranty against manufacturing defects
• Replacement straps and adjuster hardware for dealer service programmes
• Strap geometry consultation for layered cold-weather markets
• Twin-harness upgrade quoted against the same anchor positions
• Prototype samples for product development
Specification: extended strap adjustment range for layered cold-weather clothing, quick-release hardware, marsh camouflage. The operation required a case clients could remove while seated in a boat rather than standing. Order 380 pcs, production 41 days.
Specification change from 38 mm webbing to 75 mm padded strap following reports of one-sided shoulder fatigue on driven days. Contact pressure halved at the same carried load; the shoulder-transfer procedure was added to the hang tag. Order 550 pcs, production 40 days.
Anchor positions specified to accept an optional twin-harness accessory sold separately, allowing one case SKU to serve both walk-in and vehicle-access customers. Order 700 pcs, production 43 days.
“The wider strap fixed a complaint we had been getting for two seasons, and it cost us almost nothing per unit.”
— Product Manager, Sporting Agency
“Clients remove it seated in the boat. That was the requirement and it was met.”
— Head Guide, Waterfowl Operation
“One SKU covering both carry configurations simplified our range planning.”
— Buying Manager, Retail Chain
122 × 26 cm (48 × 10–11 in), approximately 0.85 kg. It takes one rifle or shotgun up to approximately 46 in overall in a tapered body.
38 mm, 50 mm, and 75 mm. Padding is fitted above 50 mm width. At 4.85 kg carried load, contact pressure runs 0.051 kg/cm² on 38 mm webbing against 0.026 kg/cm² on 75 mm padded.
Approximately 4.85 kg — the 0.85 kg case plus a 4 kg firearm. A twin harness divides this into 2.42 kg per shoulder.
It sets the hang angle of the 122 cm body. Anchors too close together allow nose-down hang and swing during carry. Spacing is confirmed at sampling and is an OEM variable.
Yes. The strap is lifted over the head and settled on the opposite shoulder while the case rotates behind. The POM adjuster holds its setting through the transfer.
For extended walked distance, steep terrain, and applications requiring both hands free. The harness fits the same anchor positions, so both configurations run from one case body.
Yes. Anchor positions can be specified to accept an optional harness sold separately, allowing one case SKU to serve both carry preferences.
Removable as standard, which allows the case to store flat. A fixed strap is available on request.
No. The POM adjuster is tested to hold its setting under sustained load, and length remains adjustable while the case is worn.
Yes. An extended adjustment range is available and is commonly specified for cold-weather markets so the case clears bulky layers.
No. The 600D Oxford outer carries a water-resistant finish for rain and spray during normal carry. The construction is stitched with a standard coil zipper and is not immersion rated.
MOQ 300 pcs, samples in 7–10 days, production in 30–45 days, quoted EXW, FOB, or CIF. Development covers strap width, anchor spacing, adjustment range, hardware, length, padding, colourway, branding, and packaging.
